Steering Gear Box 07-11 Jeep Wrangler JK 3.8L AGR Steering

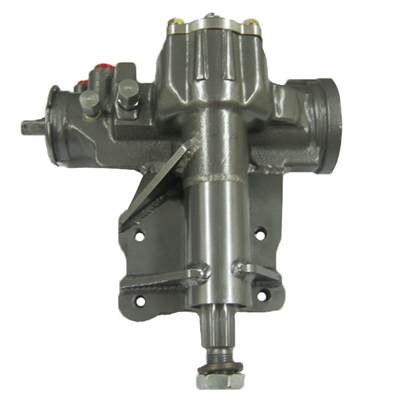

This is our JK Steering Gear Box SB1 tuned to perform to a lighter than stock feel for quick response in off road use. As you can see from the pictures this is NOT your factory style gear box. This is our fabricated gear box which is much stronger and more reliable than your factory box. This design has addressed the weak factory casting and weak sector shaft material. Our design will not flex or bind. Our Heavy Duty JK box starts life as the Saginaw box found in 3/4 ton GM trucks that have been proven for years. We then machine the box to accept our 1/4 wall DOM tubing to allow the longer sector shaft and our roller bearing kit. The mount plate is 3/8 thick with laser cut gussets for additional strength. All boxes come with factory stops to keep the steering angle sensor in its operating parameters.
Specs:

• Double flat input shaft
• Metric 18MM O-ring Pressure fittings
• Metric 16MM O-ring Return fittings
• Direct bolt in replacement
• 3/8 Inch Steel Mount Plate w/Laser Cut Gussets
• Cast Iron Box
• Clearcoat Finish
• Billet trim
• Sold As Each

Fits Vehicles:

• 2007-2011 All Jeep JK 3.8L w/Less Than 40 Inch Tire Size
• 2012-2015 All Jeep JK 3.6L w/Less Than 40 Inch Tire Size
