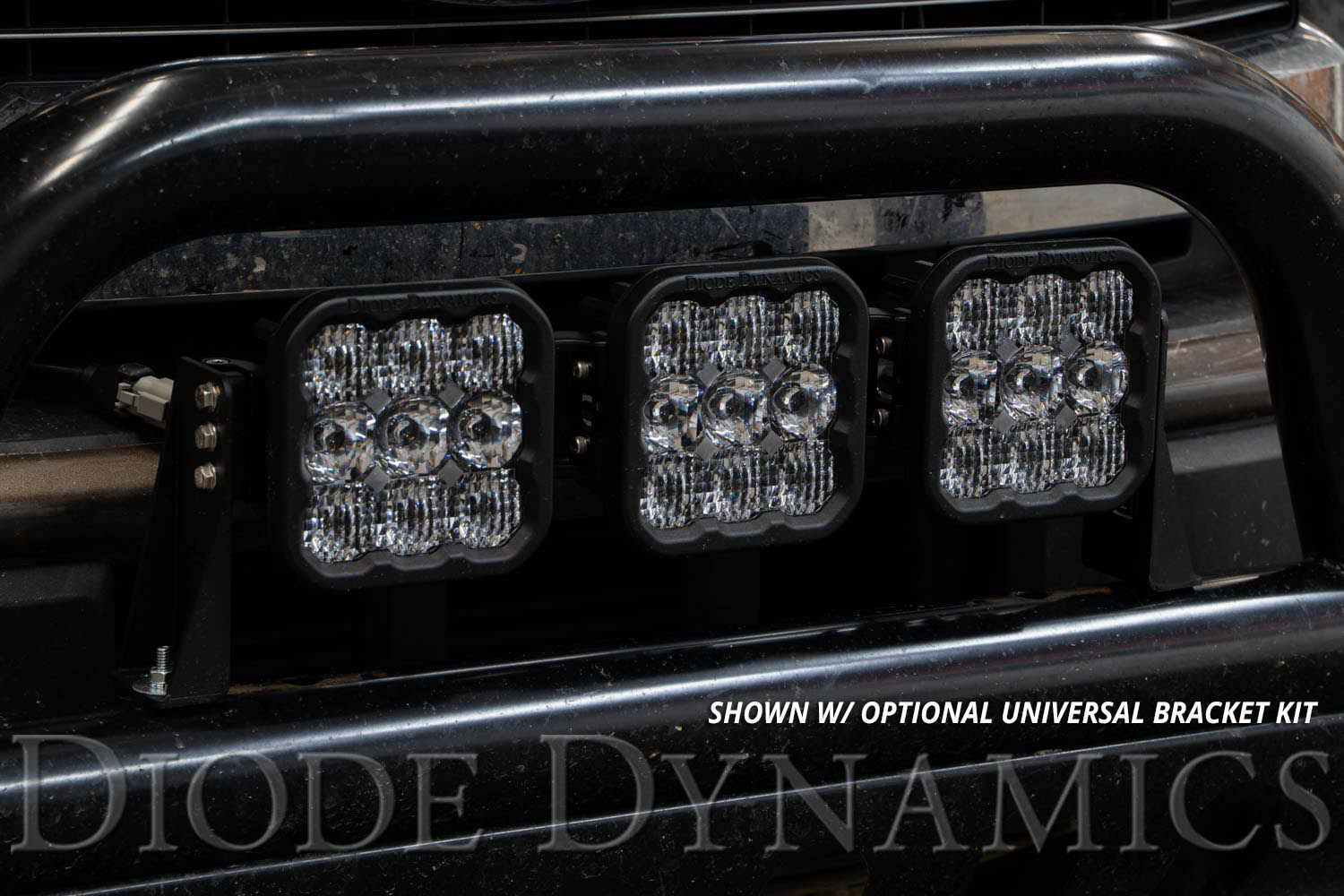

SS5 Pro Universal CrossLink 3-Pod Lightbar White Combo Diode Dynamics

Introducing the SS5 CrossLink Lightbar! Using our patent-pending CrossLink technology this kit links three SS5 LED pods together into a single lightbar. Featuring the highest output intensity of any 5-inch LED pod on the market the LED pods included in this kit have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS5 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

Selectable Backlight. The Stage Series 5inch LED Pods included in this kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you're not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods.

Simple connections. All SS5 LED pods feature a custom-molded DT type Deutsch-style connector on the back. DT splitters are included in the kit to connect the pods together along with a 6-inch pigtail with bare leads. For installation you can wire yourself use an off-the-shelf Deutsch DT sized wire harness or select the optional Diode Dynamics wire harness.
Features:

• Three-pod 18.5-inch linked lightbar
• Engineered TIR (total internal reflection) optics
• Selectable backlight color with eight color options
• Torture-tested heavy-duty construction
• Ultra-high intensity: shines almost mile away
• Assembled in USA

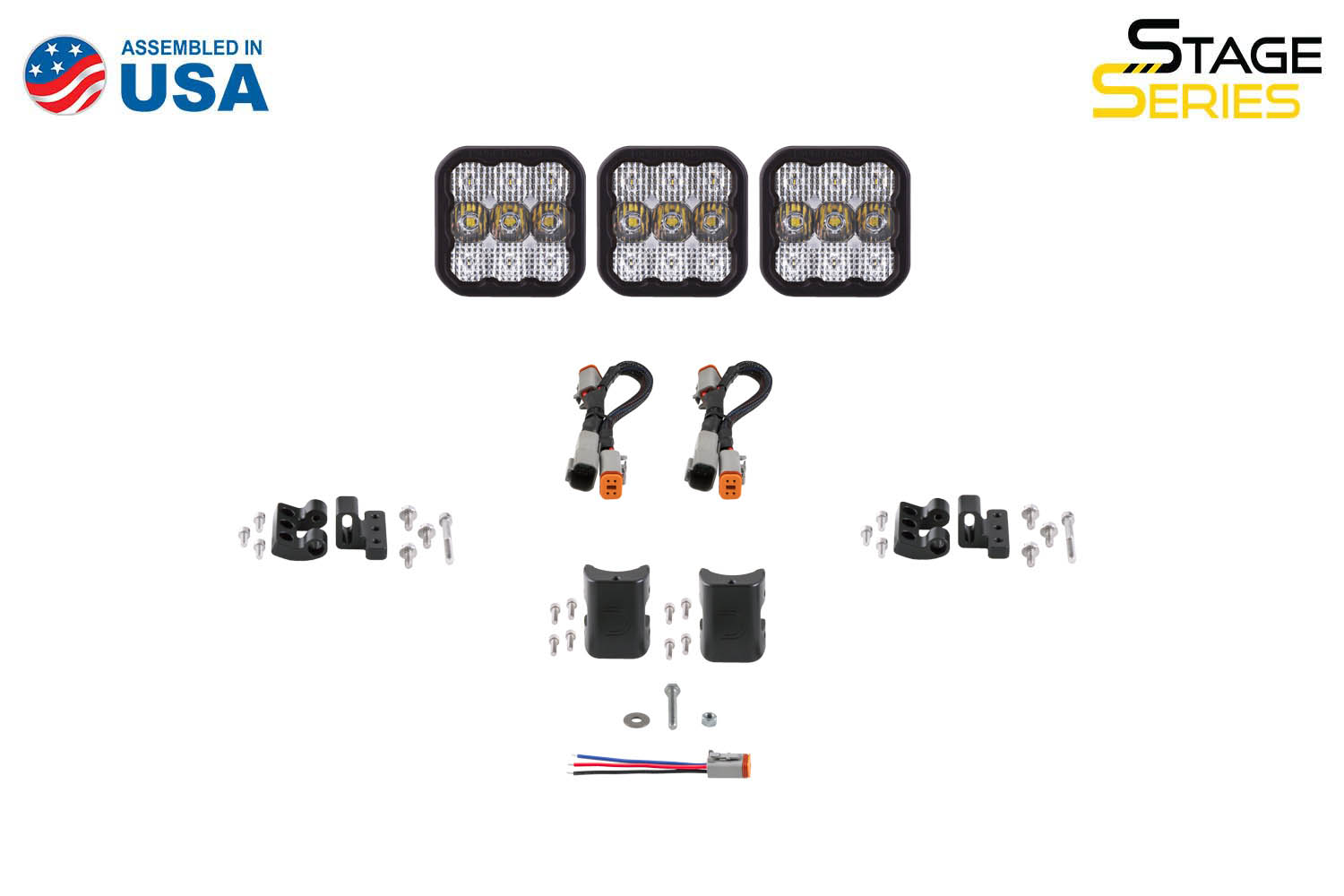

Included in the box:

• Three (3) Stage Series 5inch LED Pods
• Two (2) CrossLinks with hardware
• One (1) CrossLink endmount kit
• Two (2) splitter wires
• One (1) Deutsch-style wire pigtail
