2001 Dodge RAM 1500 5 Inch Spring Lift Kit Zone Offroad

Turn heads and drop jaws with this 5 Inch Lift Kit for your truck that gives you clearance for tires up to 35 Inch. This kit has everything you need to raise and level your 4WD 2002 - 2005 Dodge Ram 1500 Truck.

If you're going to do it, do it right.
Quick Specs:

• Front Lift Height 5 Inch
• Rear Lift Height 3 Inch
• Front Lift Method Knuckle & Drop Cross-Member
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 4.5 Inch
• Max Tire Size 35 x 12.5
• Wheel Size 2 18 x 9
• Back Spacing 2 4.5 Inch
• Max Tire Size 2 35 x 12.5
• Wheel Size 3 20 x 9
• Back Spacing 3.5 Inch
• Max Tire Size 3 35 x 12.5
• Is Adjustable No
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels No
• Welding Required No

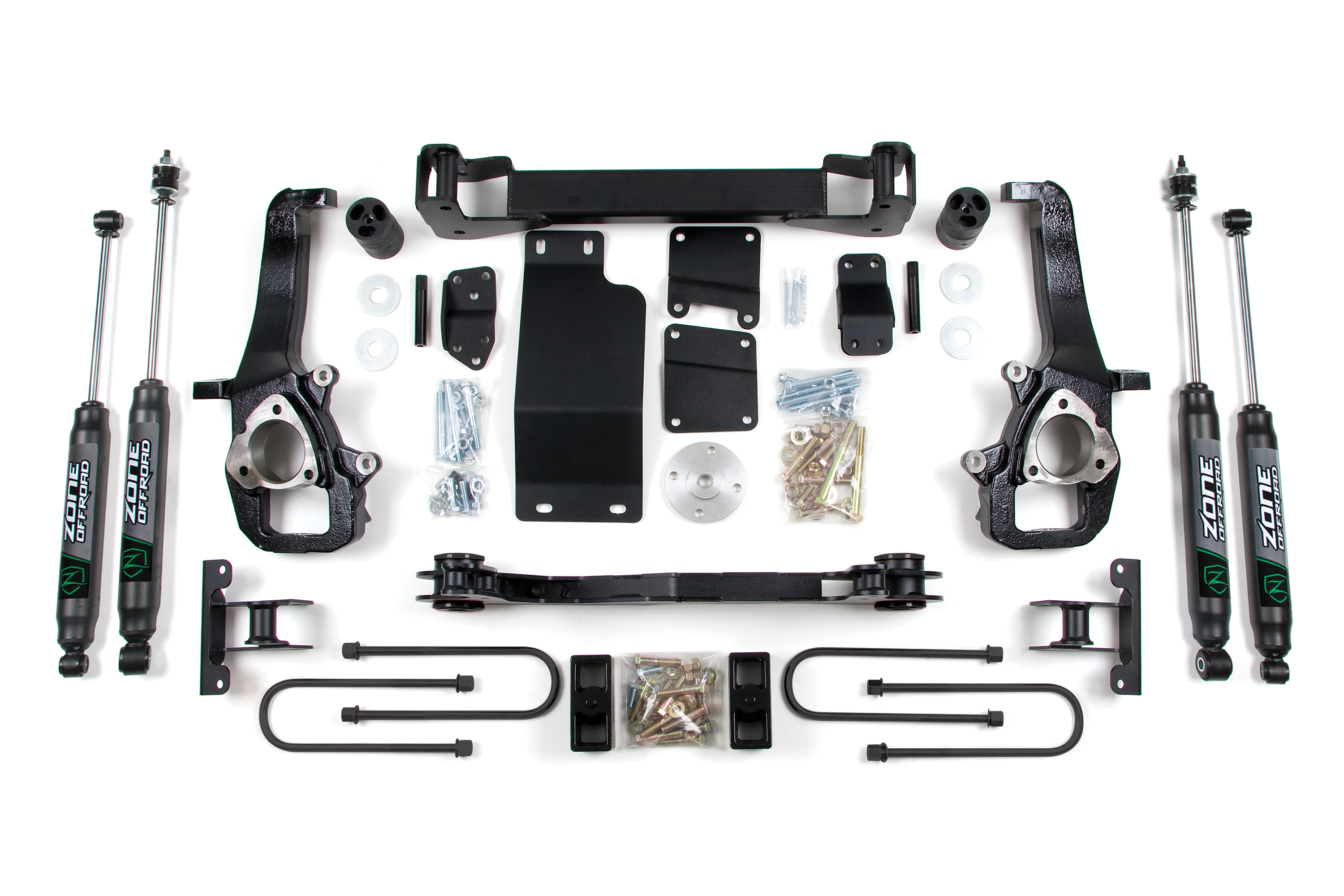

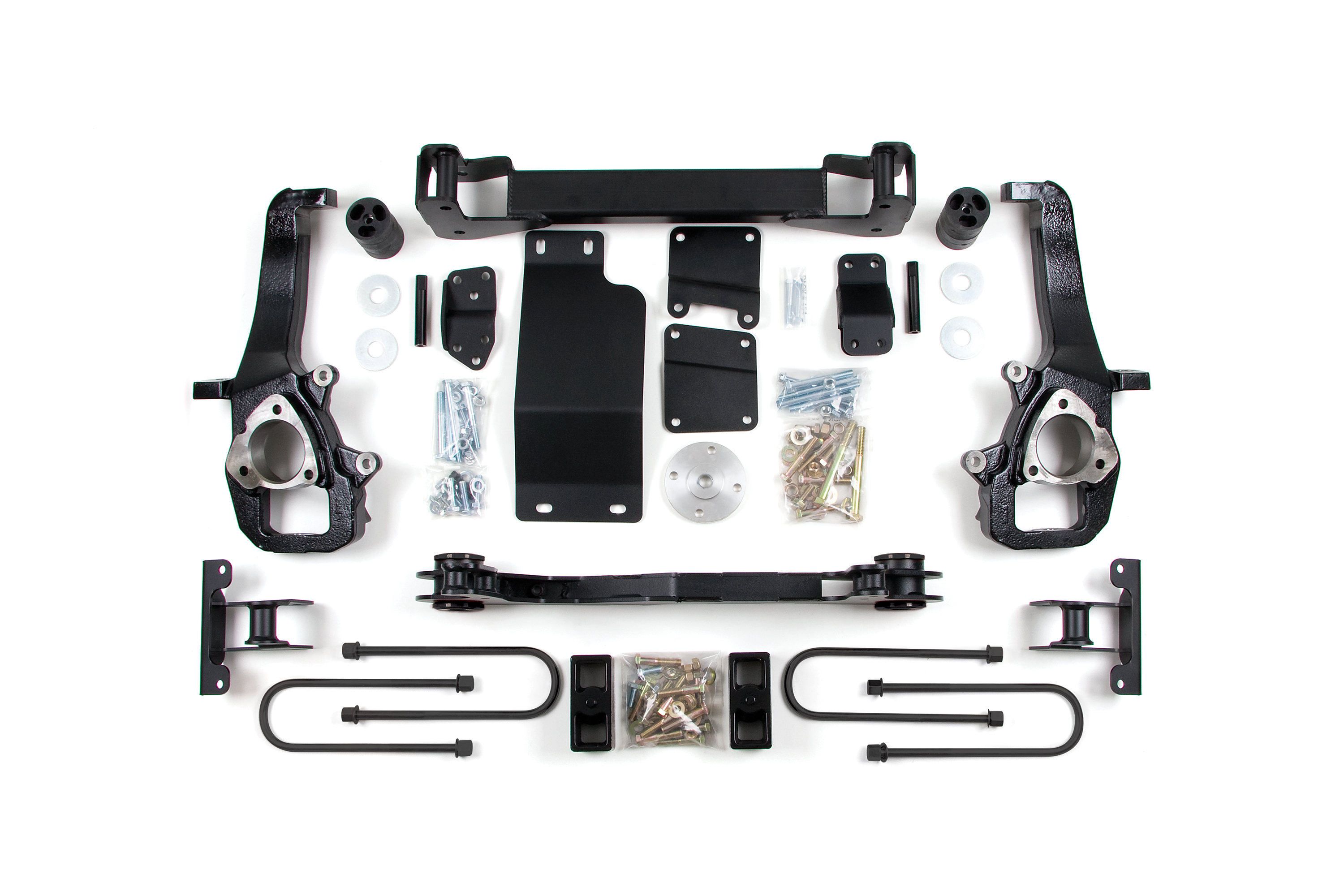

In The Box:

• All Necessary Mounting / Installation Hardware
• Crossmembers
• Differential Drop Brackets
• Rear Lift Block & U-Bolt Kit
• Skid Plate
• Steering Knuckles
• Tie Rod End(s)

Features:

• Heavy-duty differential skid slate improves offroad protection.
• High-strength, 1/4 Inch steel construction crossmembers corrects lower control arm geometry.
• High-strength, CNC machined, replacement Steering-Knuckles improve strength while correcting steering angles.

Kit Components:

• ZON7711 Nitro- 19.50 x 13.17 x 2 EB1/EB1 2 711745595514
• ZON7769 Nitro- 30.95 x 18.20 x 2-3/8 EB1/EB1 2 711745595828
• ZOND2500 02-05 Dodge 1500 Box Kit (3of4) 1 711745598393
• ZOND2501 02-05 Dodge 1500 Box Kit (4of4) 1 711745598409
• ZOND2509 02-05 Dodge 1500 Rear Box Kit 1 711745598416
• ZOND2600 02-05 Dodge 1500 4-6 inch Frnt Bx Kt (1of4) 1 711745598423
• ZOND2601 02-05 Dodge 1500 4-6 inch Frnt Bx Kt (2of4) 1 711745598430
• ZOND5201 02-05 Dodge Ram 1500 Shock Extension 1 711745598669
